Type: Ceiling Grid Components
Material: Hot dipped galvanized steel
Thickness: 0.26mm, 0.3mm
Color: Ivory white or customized
Surface treatment: Coated and baking two times
Match with: PVC gypsum board, PVC panel
Zinc coated: 80-120g
Packaging Details: Main Tee: 25/27pcs/box long cross tee: 75pcs/box short cross tee: 75pcs/box wall angle: 50pcs/box or customersized
Specifications
1) Adopts high-grade quality hot-dipped galvanized steel band.
2) Beautiful appearance, high intensity and toughness.
Description:

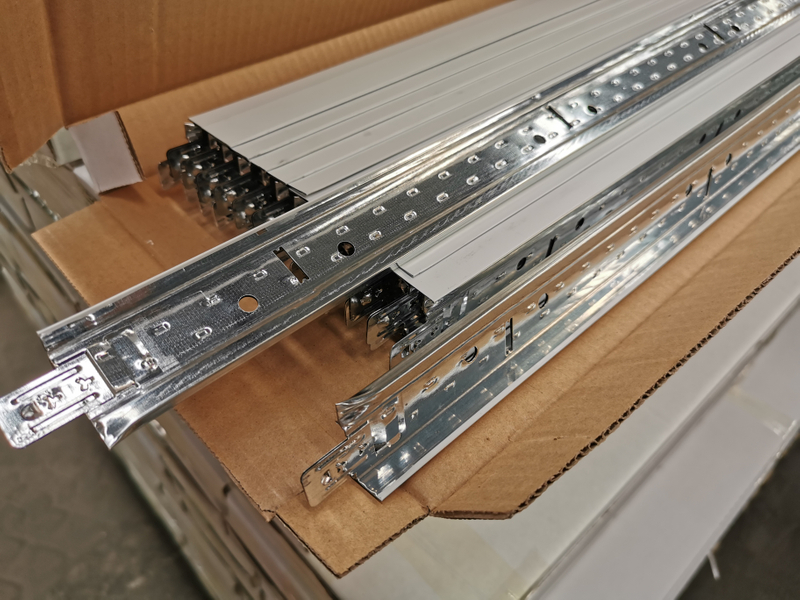

Ceiling t grid is made from hot dipped galvanized steel, pressed to T shape after cooling, baked paint on surface finish.
Features of suspended ceiling grid:
1) Adopts high-grade quality hot-dipped galvanized steel band.
2) Beautiful appearance, high intensity and toughness.
3) Available in any sizes.
4) Unique connection design for easier installation.
5) Accurate grid size for best installation effect
Installation steps:
1). Determine the request ceiling level, mark the position and fix wall angle on the wall.
2). Hang main tee with T-bar suspension hook.
3). Insert cross tee to the main tee.
4). Cross tee adjacent to wall angle light fittings
5). Adjust the levels and alignments throughout the entire grid system accurately
6). Install PVC gypsum ceiling tile or other ceiling panel.
Advantage:
1. High grade galvanized steel as main material, non-deforming, fadeless, moisture proof and anti-corrosive.
2. Strong close fitting, high symmetry
3. High load capacity
4. Easy and fast installation, save installing time and labor cost
5. Large production line and strict product inspection, larger quantity and better quality are available
Specifiacation:
H32/T24
Itemsize(mm)thickness(mm)package(pcs/ctn)
Main tee24x32x3600/3660 0.26, 0.30, 0.35, 0.4027
Long cross tee 24x26x1200/12200.26, 0.375
Short cross tee 24x26x600/6100.26, 0.375
Wall angle 22x22/22x190.3, 0.
H38/T24
Itemsize(mm)thickness (mm)package(pcs/ctn)
Main tee24x38x3600/36600.26, 0.30, 0.35, 0.4027
Long cross tee24x26x1200/12200.26, 0.375
Short cross tee24x26x600/6100.26, 0.375
Wall angle22x22/22x190.3, 0.450
